TAKE BATTERY LOGISTICS TO THE NEXT LEVEL
Benefit from our reliable and future proof battery packaging.
Use Lokistix to enhance safety over the entire supply chain
and comply with regulations.
Protecting Batteries – Lokistix Products

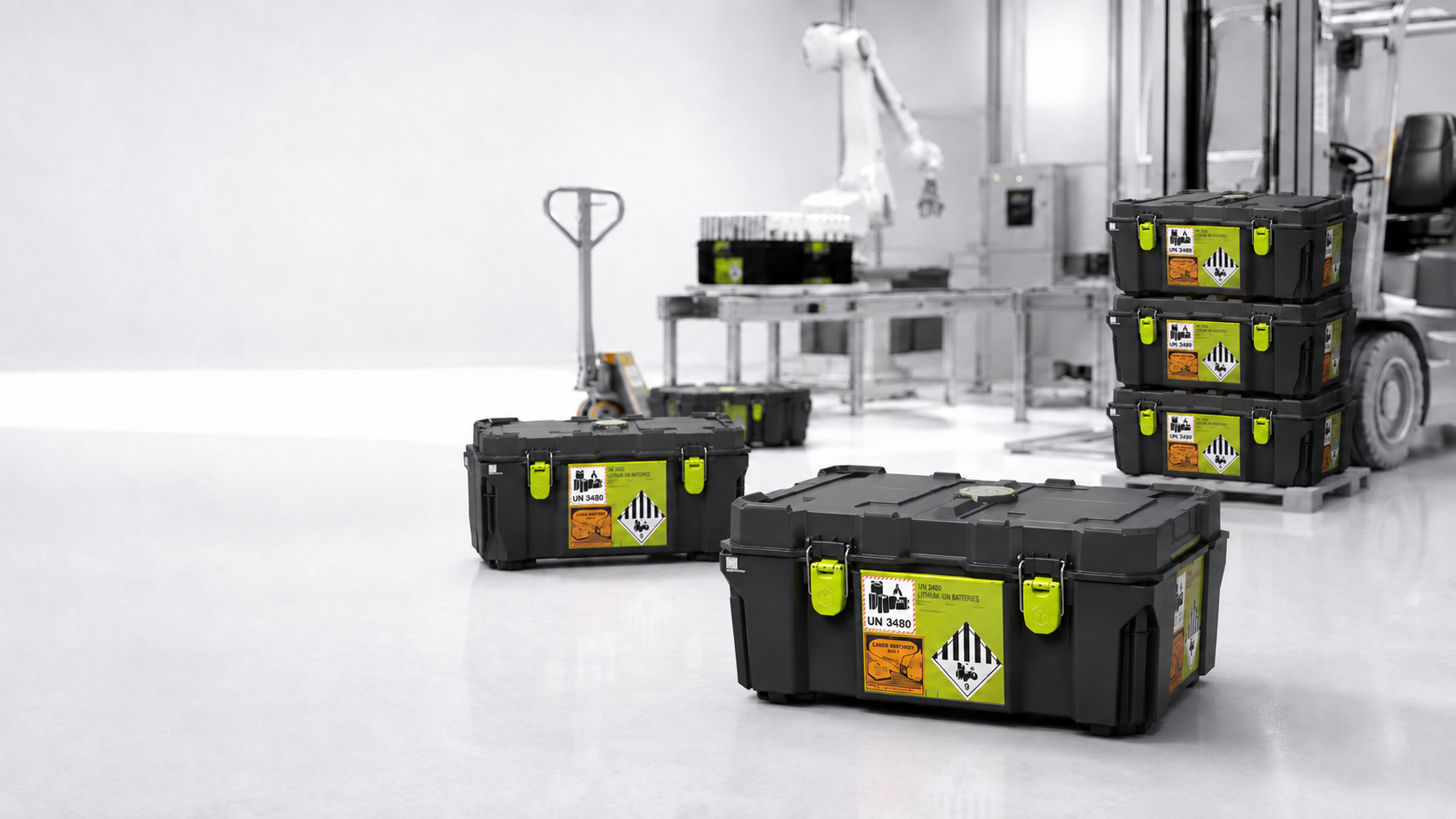

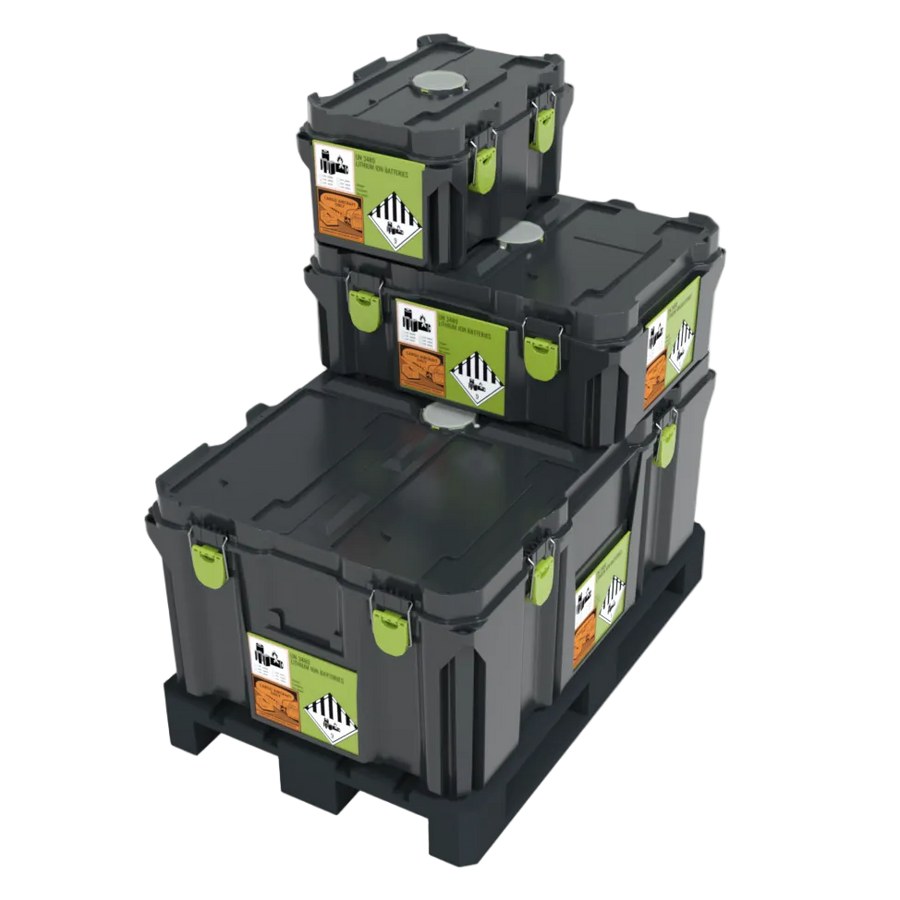

LOKI-Pack is designed as a modular, versatile, robust and re-usable battery packaging system. It allows for a high degree of flexibility by enabeling configurability according your use-cases and requirements. Simultaneously providing certification and regulation compliance.

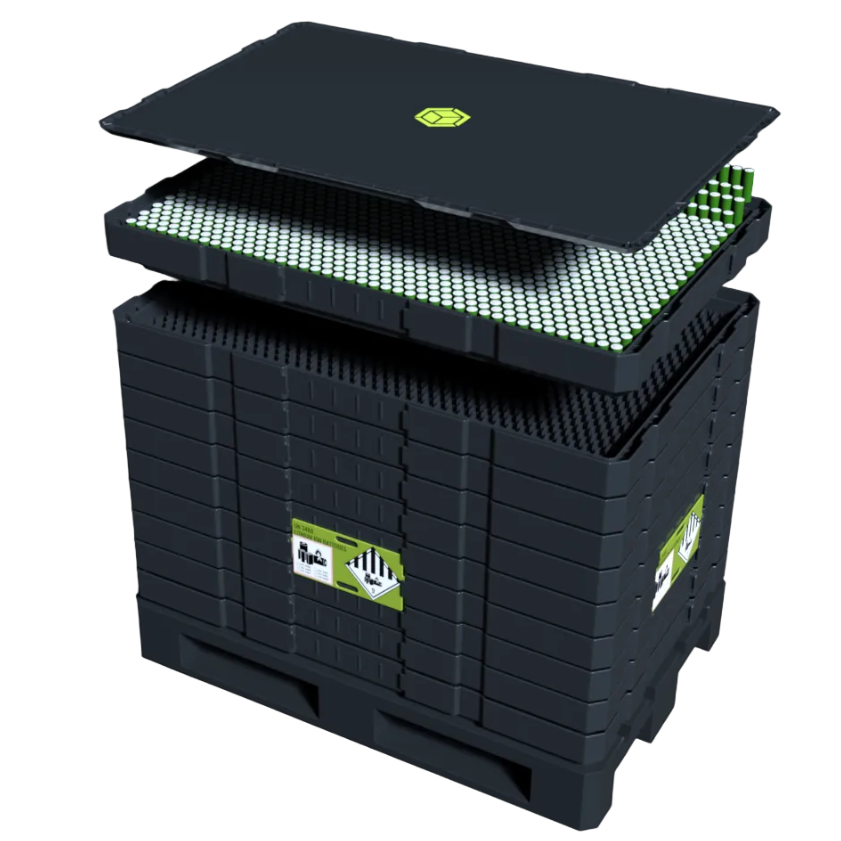

TES stands for Tailored Engineering Solutions. Lokistix offers a collaborative development possibility for customers with high volumes and specific demands. Focused on mass production, cost efficiency and automation compatibility we engineer your battery packaging.
Future Proof – Lokistix Digital Assets

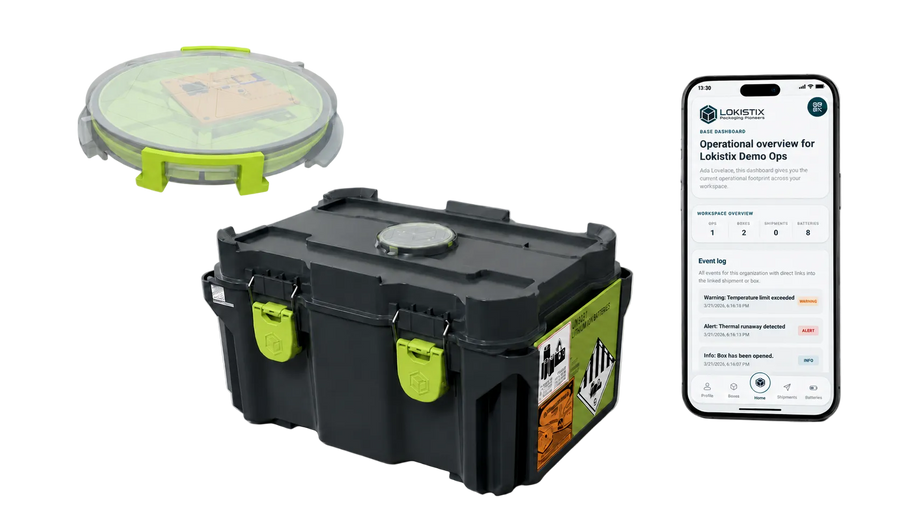

Your safety feature that notifies a mobile device in case of thermal events of your batteries.
Is the digitization of your relevant shipping documents thereby optimizing logistics process.
Provides outgoing inspection data combined with monitoring for seamless quality assurance.
Limitless Possibilities – Suitable for the entire Supply-Chain
Road transportation
(ADR)
Rail transportation
(RID)
Ship transportation
(IMDG, ADN)
Air transportation
(IATA)
Storage
(Local regulations)
UN-certified and new batteries
P 903 / P 965 – P 970
SP 188
Waste for disposal or recycling
P 909
SP 377
Pre-production prototype series
P 910
SP 310
Damaged and defective – not critical
P 908
SP 376
Critically damaged and defective
P 911
SP 376
Convince Yourself about our Advantages
Get in touch with us today to learn more about our products and discover how we can help you optimize your logistics
FAQ
Which regulations are relevant for me?
Shipping batteries means dealing with dangerous goods which will require a UN certified packaging. Depending what cells or batteries you are shipping the following types are distinguished:
- UN 3090: Lithium-metal cells or batteries
- UN 3091: Lithium-metal cells or batteries contained in or packed with equipment
- UN 3480: Lithium-ion cells or batteries
- UN 3481: Lithium-ion cells or batteries contained in or packed with equipment
These need to be labelled on your packaging. Another distinction is made based on the energy of your cells or batteries. For example:
- Lithium-ion cells ≤ 20 Wh require packaging and labelling according to SP 188 / PI 965 Section IB.
- Lithium-ion cells > 20 Wh require packaging and labelling according to P 903 / PI 965 Section IA.
Further requirements to packaging and labelling occur when the state of the cell or battery is not new and certified, for example:
- P 908 defect
- P 909 recycling or disposal
- P 910 prototypes
- P 911 critically defect
The UN framework is adapted into legally binding regulations by different organizations:
- ADR / U.S. DOT 49 CFR – Road transport
- IMDG / ADN – Sea transport
- RID – Rail transport
- IATA – Air transport
At Lokistix we have the right solution for your case. If you want to know more, contact us for your professional dangerous good consulting.
What is the size of the box?

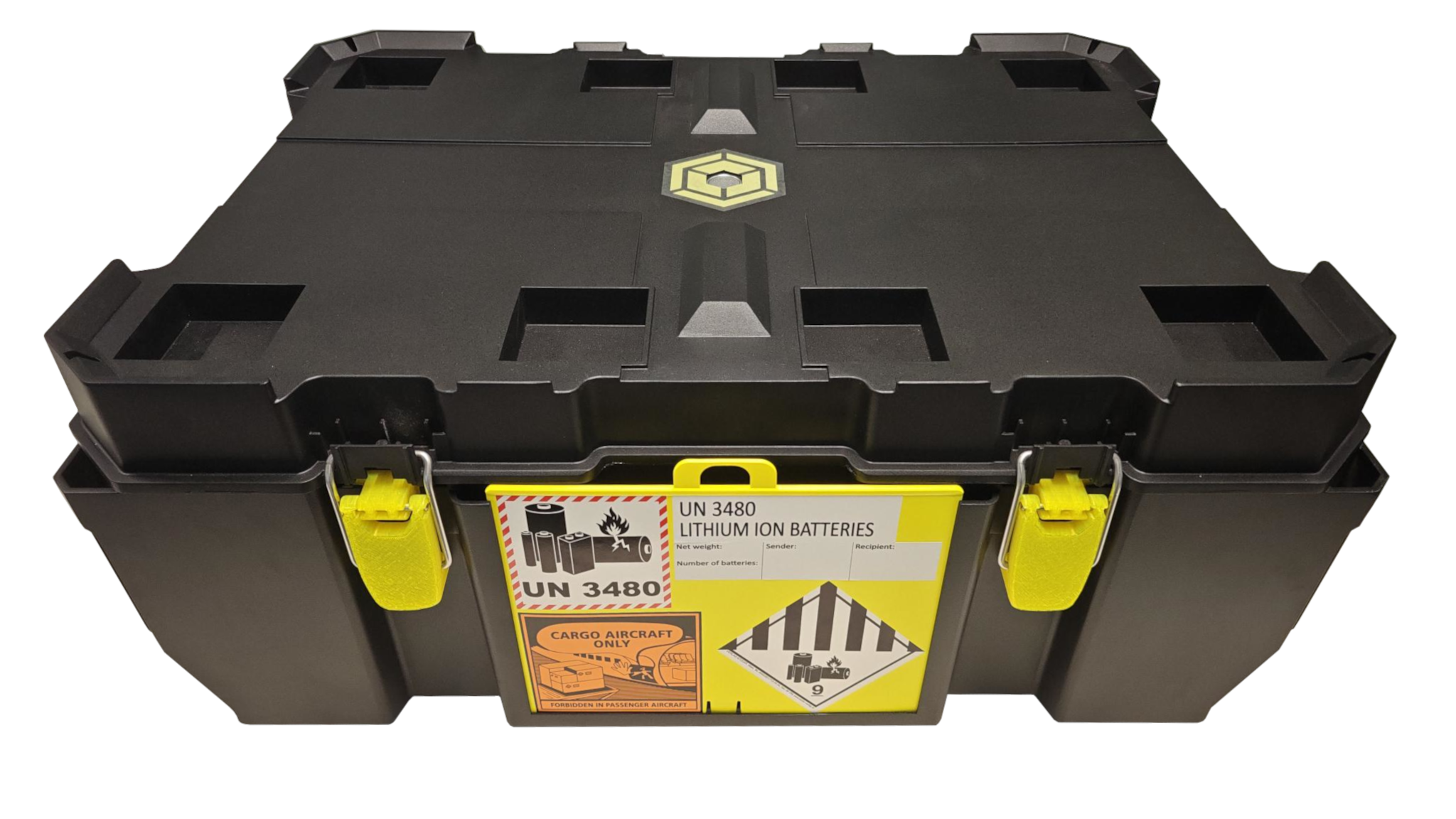

LOKI-Pack:
LOKI-Pack is available in small (S), medium (M) and large (L), each of which is compatible with a standard Euro pallet:
S (1/4 pallet): 600 x 400 mm
M (1/2 pallet): 800 x 600 mm
L (Full pallet): 1200 x 800 mm
The height of LOKI-Pack is 340 mm. Optionally the formats are also available based on a industrial pallet.
LOKI-TES:
Tailored Engineering enables a higher degree of freedom im Box sizes. However our systems in LOKI-TES is also oriented on EPAL and IPAL footprints, for seamless logistic processes. If different formats are required contact us.
Where can I buy it?
The boxes are only sold directly by Lokistix GmbH from Austria. Please reach out to discuss a quote.
Abbreviations
ADC: Analaog-to-digital converter.
ADN: The European Agreement concerning the International Carriage of Dangerous Goods by Inland Waterways.
ADR: Stands for: “Accord européen relatif au transport international des marchandises dangereuses par route” or European Agreement concerning the International Carriage of Dangerous Goods.
CFR: Code of Federal Regulations
IATA: International Air Transportation Associaction
IMDG: International Maritime Dangerous Goods Code
RID: Stands for “Reglement International concernant le transport des marchandises Dangereuses par chemin de fe” or regulations concerning the international carriage of dangerous goods by rail.
TES: Tailored Engineering Solutions.
U.S. DOT: United States Department of Transportation
